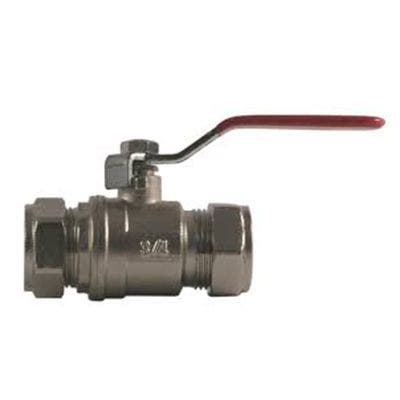

15mm CxC Red Handle Lever Valve WRAS Approved
In stock
Product Code
U19471
INSTANTOR® CxC FULL BORE COPPER ALLOY LEVER ACTION BALL VALVES
- Size Range ½” , ¾”, 1”, 15mm, 22mm, 28mm CxC with Gland nut and with Red or Blue Coloured PVC Handles
- Max Operating Pressure 25 Bar
- Min Operating Pressure 0 Bar
- Max Operating Temperature 85°C. With short term excursions of 95°C (less than 1 hour)
- Min Operating Temperature -20°C
- Material Specification EN12165 CW617N DW Brass – Plated, EDPM O-rings and with PTFE seals.
To Standard:
- Compression Ends to I.S.E.N:1254-2:1998
- WRAS Cert No. 1904354. & KIWA Cert No. 1904751.
- Water fittings Regulation 1999
- Size Range ½” , ¾”, 1”, 15mm, 22mm, 28mm CxC with Gland nut and with Red or Blue Coloured PVC Handles
- Max Operating Pressure 25 Bar
- Min Operating Pressure 0 Bar
- Max Operating Temperature 85°C. With short term excursions of 95°C (less than 1 hour)
- Min Operating Temperature -20°C
- Material Specification EN12165 CW617N DW Brass – Plated, EDPM O-rings and with PTFE seals.
To Standard:
- Compression Ends to I.S.E.N:1254-2:1998
- WRAS Cert No. 1904354. & KIWA Cert No. 1904751.
- Water fittings Regulation 1999
| Colour | Red |
|---|---|
| Brand | Instantor |
| Manufacturer Part Code | 771719R |
| Range | Valves |
| Product Type | Lever Valve |
| Material | Chrome plated brass |
