½" 3.5L Chemical Dosing Pot
In stock
Product Code
U93782
Dosing pots are required in order to feed liquid chemicals such as corrosion inhibitors into closed systems.

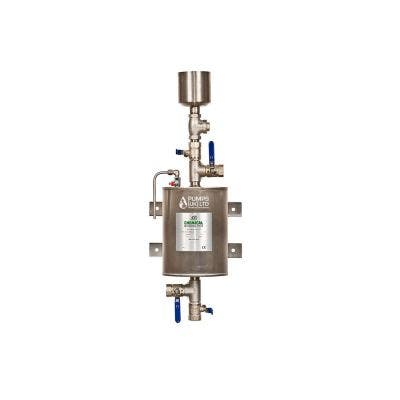

The chemical dosing pots consist of a stainless steel vessel with inlet (return) and outlet (flow) valves, a drain valve and a filling valve. A steel tundish, air release valve, wall mounting brackets and a non-return valve.
Closed re-circulating water systems (chilled or hot water) can be simply dosed on a regular / manual basis by use of these dosing pots. Fitted across flow and return lines, they provide a means to annex a portion of the system water which can be drained away and replaced with the chemical to be dosed. When re-connected to the system, the chemical is flushed through.
The dosing pots are fitted with large 1 valves, which ensure quick and easy action of the pot even in low flow/pressure conditions. An air vent valve enables the pot to be purged during filling thus eliminating undesirable air ingress to the system. A NRV check valve is fitted into the fill line below the tundish.
Operation
Operation
• Isolate pot: close all valves
• Drain pot: open valves A and D
• Charge pot: close valve D and introduce solution via valve A (tundish)
• Expel air: open air vent until solution appears
• Inject treatment: close valve A fully and open valves B and C.
• The dosing pot may reach temperatures up to 120 degrees centigrade.
• Protection or warnings should be applied to ensure that personnel do not come into
contact with the pot so as to avoid burns.
• A check valve is installed to prevent accidental scolding and chemical saturation (blow
back) of personnel operating the dosing pot.
Specification
• Stainless Steel Shell
• Valve size 25mm BSP female for all dosing pots
• Welded to BS EN 287
• All dosing pots that are designed to PD 5500:2009 category 3 (C E marked) have
the following Max. Working pressures:
- 14 bar-3.5 litres to 6 litres inclusive
- 10 bar- 10 litre to 20 litres inclusive
- 8 bar-25 litres
• Dosing pots that are not designed to the above are available which have maximum
working pressure of 14 bar throughout the range (3.5 litre to 25 litre).
• Matt Stainless Steel finish"
The chemical dosing pots consist of a stainless steel vessel with inlet (return) and outlet (flow) valves, a drain valve and a filling valve. A steel tundish, air release valve, wall mounting brackets and a non-return valve.
Closed re-circulating water systems (chilled or hot water) can be simply dosed on a regular / manual basis by use of these dosing pots. Fitted across flow and return lines, they provide a means to annex a portion of the system water which can be drained away and replaced with the chemical to be dosed. When re-connected to the system, the chemical is flushed through.
The dosing pots are fitted with large 1 valves, which ensure quick and easy action of the pot even in low flow/pressure conditions. An air vent valve enables the pot to be purged during filling thus eliminating undesirable air ingress to the system. A NRV check valve is fitted into the fill line below the tundish.
Operation
Operation
• Isolate pot: close all valves
• Drain pot: open valves A and D
• Charge pot: close valve D and introduce solution via valve A (tundish)
• Expel air: open air vent until solution appears
• Inject treatment: close valve A fully and open valves B and C.
• The dosing pot may reach temperatures up to 120 degrees centigrade.
• Protection or warnings should be applied to ensure that personnel do not come into
contact with the pot so as to avoid burns.
• A check valve is installed to prevent accidental scolding and chemical saturation (blow
back) of personnel operating the dosing pot.
Specification
• Stainless Steel Shell
• Valve size 25mm BSP female for all dosing pots
• Welded to BS EN 287
• All dosing pots that are designed to PD 5500:2009 category 3 (C E marked) have
the following Max. Working pressures:
- 14 bar-3.5 litres to 6 litres inclusive
- 10 bar- 10 litre to 20 litres inclusive
- 8 bar-25 litres
• Dosing pots that are not designed to the above are available which have maximum
working pressure of 14 bar throughout the range (3.5 litre to 25 litre).
• Matt Stainless Steel finish"
Manufacturer Part Code | DP-3.5 |
---|---|
Product Type | Valve |
Material | Stainless Steel |
