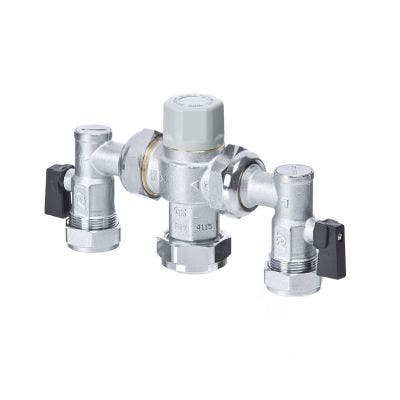

Caleffi 5213 TMV3 Thermostatic Mixing Valve with MX Valves 28LPM
In stock
Product Code
U28386
The Merchant failsafe thermostatic mixing valve has been specifically designed and manufactured to meet the requirements of the latest national health service model engineering specification - D08 and BS 7942 for use in care homes.
SPECIFICATION
- Temperature setting range : 30 – 50°C
- Temperature stability : ±2°C
- Max. working pressure (static) : 10 bar
- Max. working pressure (dynamic ): 5 bar
- Max. inlet temperature : 85°C
- Max. inlet pressure ratio (H/C or C/H) : 6:1
- Minimum temperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance : 10°C
- Minimum flow rate for stable operation : 4 l/min
- Service kit available
SPECIFICATION
- Temperature setting range : 30 – 50°C
- Temperature stability : ±2°C
- Max. working pressure (static) : 10 bar
- Max. working pressure (dynamic ): 5 bar
- Max. inlet temperature : 85°C
- Max. inlet pressure ratio (H/C or C/H) : 6:1
- Minimum temperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance : 10°C
- Minimum flow rate for stable operation : 4 l/min
- Service kit available
| Brand | Altecnic |
|---|---|
| Manufacturer Part Code | CA-100828 |
| Range | Caleffi |
| Product Type | Mixing Valve |
| Standards | WRAS; TMV2; TMV3 |
| Connection Type | Compression |
| Connection Size | 22 mm |
